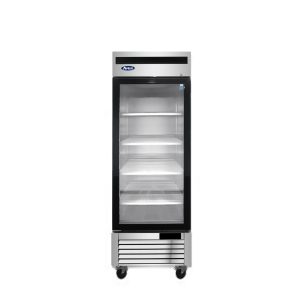

MCF8701GRL —27'' One (1) Glass Door Reach-in Freezer

Standard Features:

• Stainless steel exterior & interior
• LED interior lights
• Heavy duty Embraco compressor with environmentally friendly R290 refrigerant
• Electronic temperature controller
• Maintains temperatures between -8°F – 0°F
• Self-closing door(s) with automatic stay open feature
• Recessed door handle
• Magnetic door gasket
• Double pane glass door
• Pre-installed casters
• NEMA-5-15P plug standard
• Four (4) pre-installed shelves per section

Optional Features:

• Extra Shelves – includes 4 shelf clips per shelf
  • MCF8701GR shelf part #: W0402394
  • MCF8703ES shelf part #: W0402395

• 2 Year Parts and Labor Warranty

  Atosa warrants all new refrigerated components, such as the cabinet and all parts, to be free from defects in materials or workmanship up to a period of two (2) years.

  5 Year Compressor Warranty

  In addition to the two (2) year warranty, Atosa warrants its sealed compressor to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of three (3) additional years from the date of original installation.

  Model	Doors	Capacity (Cu. Ft.)	Shelves	Casters (inch)	Rated Current (A)	Voltage (V/Hz/Ph)	HP	Refrigerant	Exterior Dimensions (inch)	Net Weight (lb)	Gross Weight (lb)
  MCF8701GRL	1	19.1	4	4	6.3	115/60/1	1/2	R290	27" x 31" 7/10 x 83" 1/10	309	342
